Main technical parameters

Rated voltage：10（6）35KV

Rated frequency：50HZ

Rated capacity：50-20000kvar

Neutral point wiring method: non-effective grounding or neutral point insulation

1. Product introduction

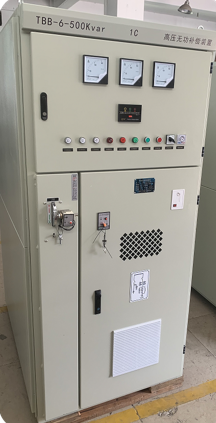

   HZHTBB type reactive power compensation capacitor cabinet is used in rated voltage 1kv~35kv power frequency power system, as a shunt capacitor bank, compensate for the inductive reactive power in the system, in order to improve the power factor of the power grid and improve the quality of the distribution voltage, reduce losses, increase the supply capacity of power equipment, in order to obtain the safe, reliable and economical operation of the distribution system, and the series reactor has the function of suppressing harmonics to ensure the safe and reliable operation of the device itself and the connected power grid.

      The device adopts fully enclosed cabinet and high protection level, each set of closed cabinet has live and current display components, can be installed independently or combined with KYN28/KYN61 switchgear.

      This device is a fixed compensation method, and manual automatic group switching can also be adopted according to user requirements.、

1. Performance characteristics

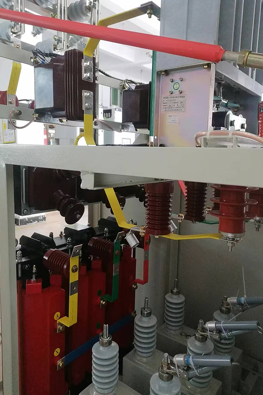

   It adopts high-quality three-phase power container, which has low operating temperature rise, high discharge starting voltage, good sealing and high reliability

   The capacitor has a built-in discharge element, and the residual voltage can be reduced to less than 50V within 3 minutes after the compensation device is disconnected from the grid




   Improve the power factor of electrical equipment, which can be increased to more than 0.95, and can reduce current by 10~20%

   Improve equipment operation efficiency and reduce line reactive power loss.

   Improve the quality of power supply, increase the output of electrical equipment, improve the transformer debt ratio and the efficiency of electrical equipment, and increase power supply capacity

   Equipped with high-voltage live display, electromagnetic lock, observation window, with forced locking function

   The structure design is reasonable, easy to use, and can be cut synchronously with the motor

       Conditions of use

       Installation site：Indoors/outdoors

       Ambient temperature: -40°C~+45°C

       Relative humidity: ≤90% (25°C)

       Altitude: ≤4500 m

       The installation site should be free of severe mechanical vibration, no harmful gases and steam, and no conductive or explosive dust
