Three phase power capacitor

More detail:Wasvar Electronics three phase power capacitor(Cylindrical).pdf

Introduction

Power capacitors are capacitors used in power systems and electrical equipment. Any two metal conductors separated by an insulating medium constitute a capacitor. When the capacitor is used under AC voltage, its reactive power is usually used to express the capacity of the capacitor, and the unit is var or kvar.

Parallel capacitors. It is mainly used to compensate the reactive power of the inductive load of the power system to increase the power factor, improve the voltage quality and reduce the line loss.

Performance and Characteristic

1.Strong self-healing property, excellent self-healing performance, when the medium caused by over-voltage ocal breakdown can self-repair, restore the normal work.

2.Good safety performance: capacitor built-in overvoltage protection device, in case of fault or overload can automatically cut off the power supply, the product is safe and reliable, capacitor built-in discharge resistance capacitor cut off the power supply 2-3 minutes after the residual voltage is less than 75V.

3.All-dry structure: The capacitor core is impregnated with high vacuum silicone oil for heat setting and then filled with flame-retardant colloidal material to avoid oil pollution to the environment.

4.Long service life: adopting special composite electrode materials and reinforced absolute material design, the capacitor has low loss and the capacitance loss in operation is minimal.After 2 years of use in normal environment, the capacitance decrease is less than 2%

5.The capacitor adopts metal aluminum shell structure, the product dissipates heat quickly and is anti-corrosion and anti-oxidation, the product structure is compact, the volume is small, the installation is convenient, beautiful and generous.

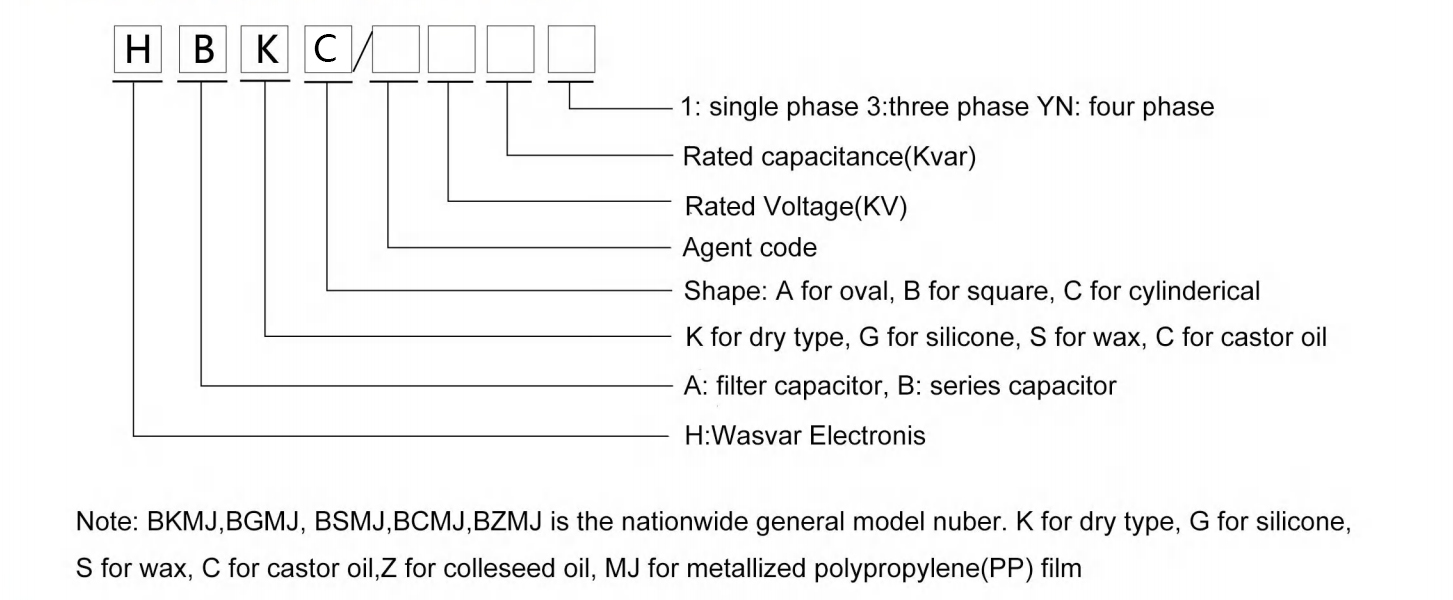

Introduction of model number

Specifications
