AC output filter capacitor(Box plastic case, Pin type)

AC output filter capacitor(Box plastic case, Pin type)


AS1 series is suitable for the output filter circuit in photovoltaic inverter, switch power supply, UPS, converter and other kinds of power electronic equipment, as LC filter with the inductance.

Product characteristics：

●  Installed conveniently, can be directly inserted PCB welding
●  High ripple current handling capability
●  Low loss and low temperature rise
●  Low stray inductance, good heat dissipation
●  Flame retardant box plastic case, epoxy resin, dry-type

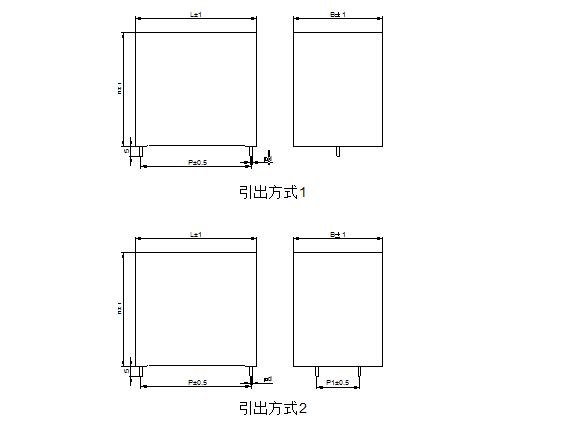

Outline drawing(mm)

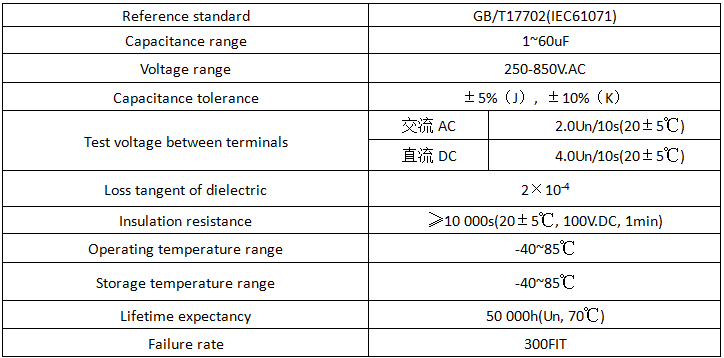

Specifications:
