DC-LINK power electronic capacitor

Product characteristics：

●   Long lifetime
●   High ripple current handing capability
●   Low ESR
●   High insulation resistance, low leakage current
●   Low stray inductance, good heat dissipation
●   Strong self-healing capacity
●   Aluminum case, epoxy resin, dry-type

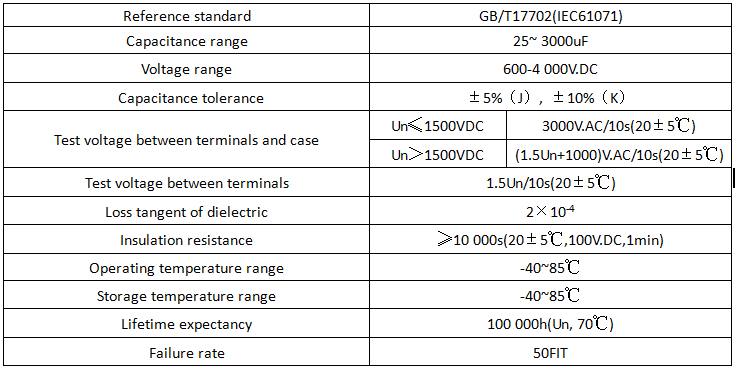

Specifications

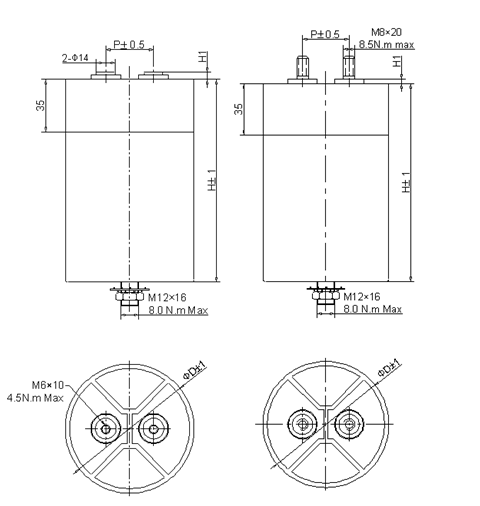

Outline drawing(mm)

Any Technical data please contact us.
Email:sales2@wasvar.com.cn

Contact

(+86)-757-28373603
(+86)-757-28370869
Room 701, Block 7,Tianfulai Industrial Zone No.2, Ronggui, Shunde district, Foshan city, Guangdong province, China.528305

DC-LINK capacitor (Cylindrical aluminum case)
